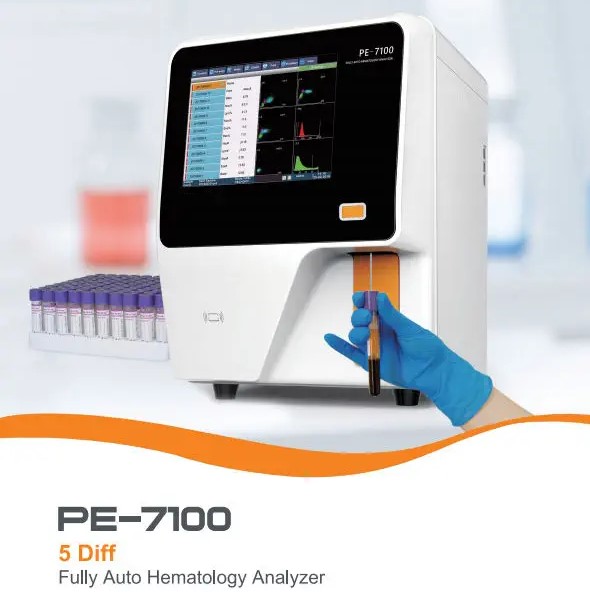

5 Diff Fully Auto Hematology Analyzer PE-7100

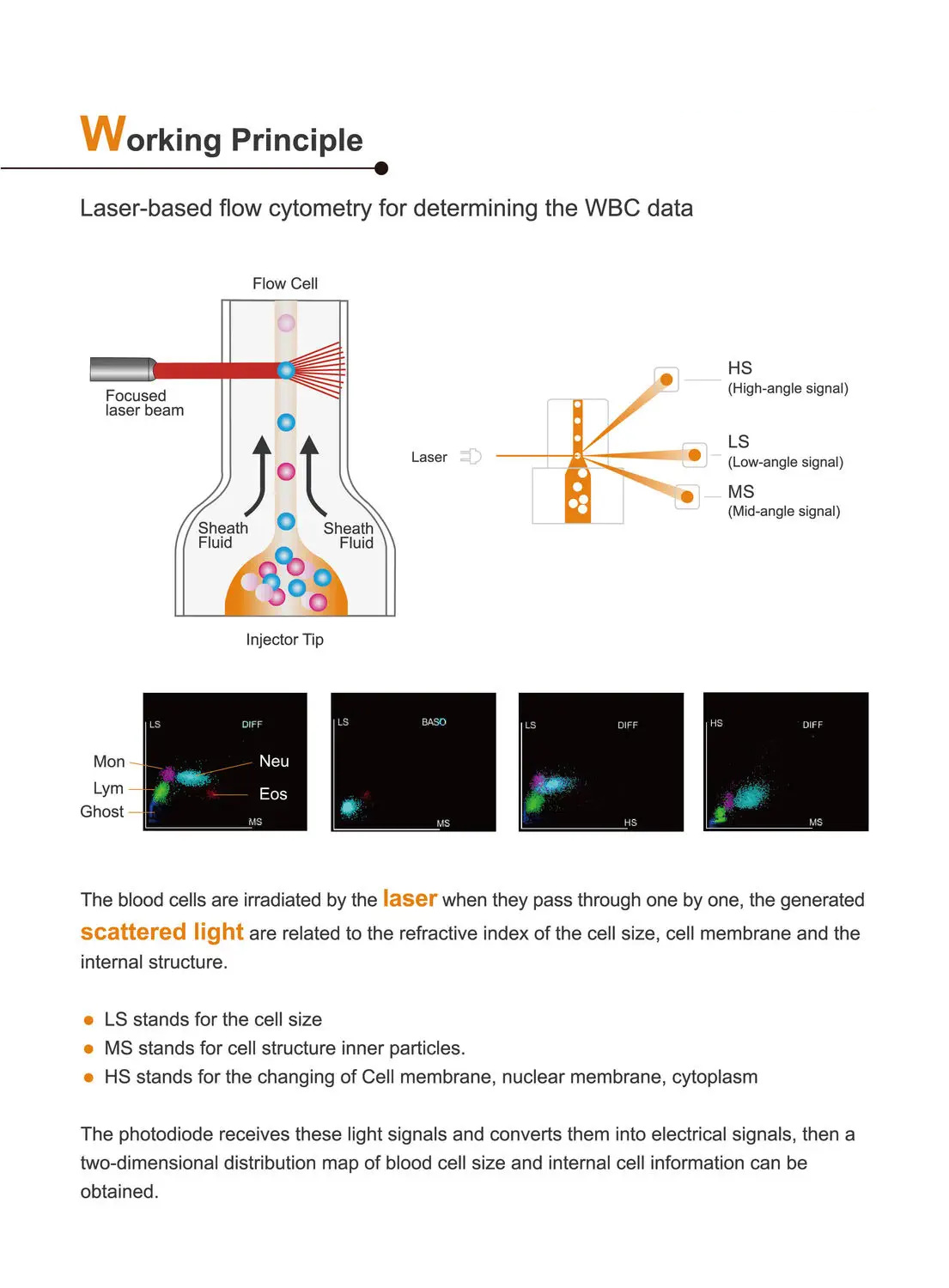

Working Principle:
Electrical Impedance method for determining the RBC and PLT data;
Colorimetric method for determining the HGB;
Laser-based flow cytometry for determining the WBC data

Parameters:
23 parameters+8 Research parameters +4 scatter diagrams and 3 histograms:WBC/RBC/PLT; 5 Diff of WBC

Sample volume:
Venous Mode/Capillary Mode/Pre-diluted Mode≤20μL

Operation Mode:

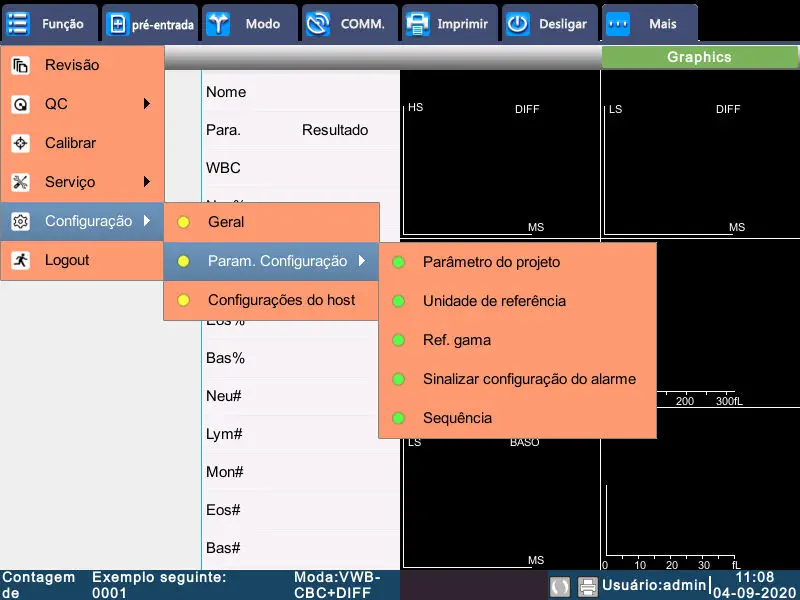

Touch screen operation,also support USB keyboard & mouse; Based on Linux system

Throughput
60 samples/h, 24 hours work with auto standby

Storage
50,000 sample results inclusive of the histograms

Application
Baby/kid/women/manrmal/customized

Quality control:L-J; X-B

Display: 10.4'' touch screen

Language
Multi-Language supported,user can on-line switch interface language

Calibration mode:
Manual calibration and auto calibration

Working environment: Temperature: 10-30℃, Humidity≤70%

Test mode: CBC+DIFF, CBC

Related Products:

Weight: 26.5KG

Dimension: 364×498×431(mm)
